POWER STOP
JBR1737XPR

第三方数据POWER STOP : JBR1737XPR

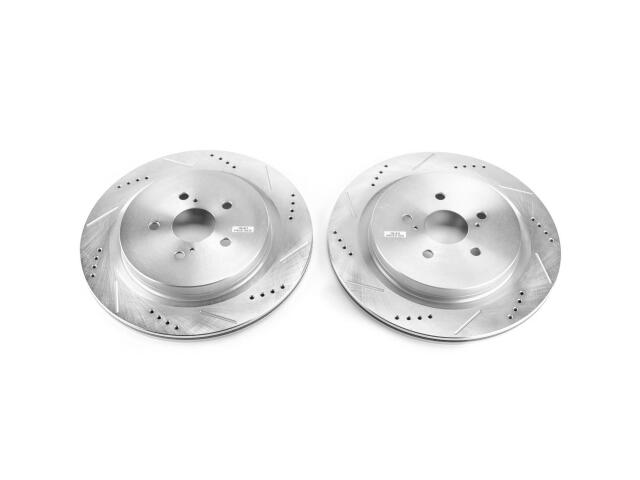

Rotor
POWER STOP : JBR1737XPR

ABS Sensor Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.65
Discard Thickness (MM): 16.50
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.71
Nominal Thickness (MM): 18.00
Outside Diameter (IN): 13.31
Outside Diameter (MM): 338.00
Overall Height (IN): 1.56
Overall Height (MM): 39.60
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

LEXUS (2)
