POWER STOP
JBR1310EVC

第三方数据POWER STOP : JBR1310EVC

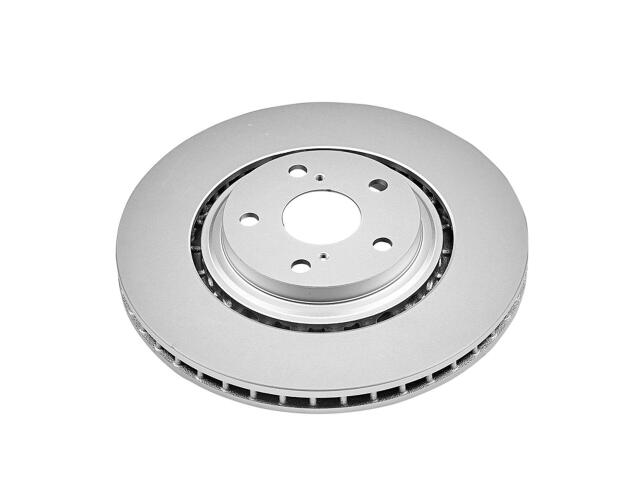

Rotor
POWER STOP : JBR1310EVC

ABS Sensor Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.98
Discard Thickness (MM): 25.00
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 1.10
Nominal Thickness (MM): 28.00
Outside Diameter (IN): 12.91
Outside Diameter (MM): 328.00
Overall Height (IN): 1.93
Overall Height (MM): 49.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LEXUS (5)

NX200T (1)

NX300 (1)

NX300H (1)

RX350 (1)

RX450H (1)

TOYOTA (2)

HIGHLANDER (4)

2.7L L4 (11)

3.3L V6 ELECTRIC/GAS (3)

3.5L V6 (12)

3.5L V6 ELECTRIC/GAS (9)

SIENNA (2)
