第三方数据POWER STOP : JBR1151EVC

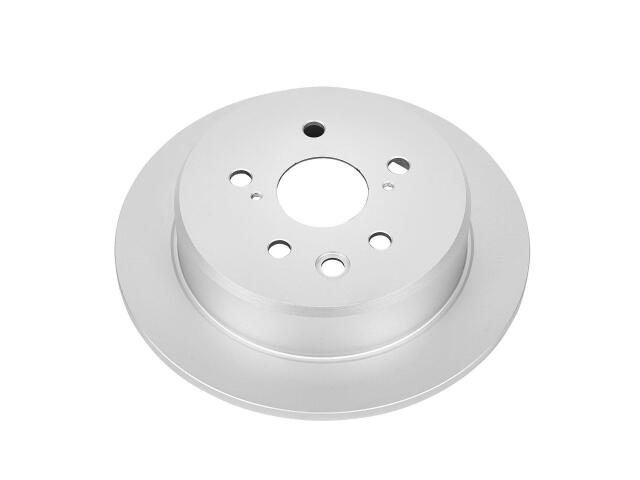

Rotor
POWER STOP : JBR1151EVC

ABS Sensor Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.50
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10.00
Outside Diameter (IN): 11.46
Outside Diameter (MM): 291.00
Overall Height (IN): 2.42
Overall Height (MM): 61.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LEXUS (1)
