POWER STOP
JBR1123EVC

第三方数据POWER STOP : JBR1123EVC

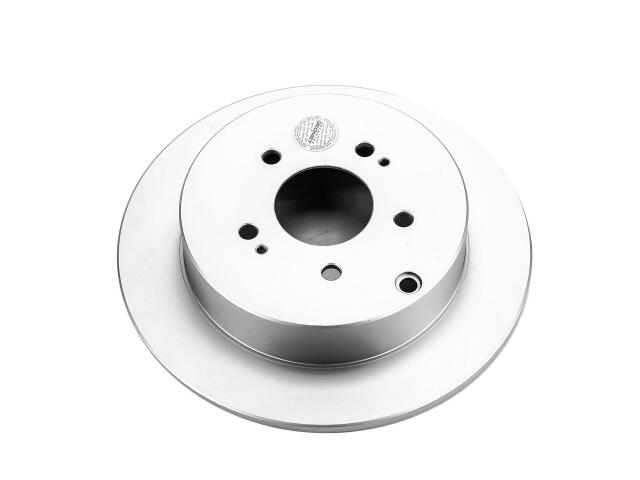

Rotor
POWER STOP : JBR1123EVC

ABS Sensor Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.40
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.40
Nominal Thickness (MM): 10.10
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302.00
Overall Height (IN): 2.31
Overall Height (MM): 58.70
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MITSUBISHI (1)
