POWER STOP
EBR612EVC

第三方数据POWER STOP : EBR612EVC

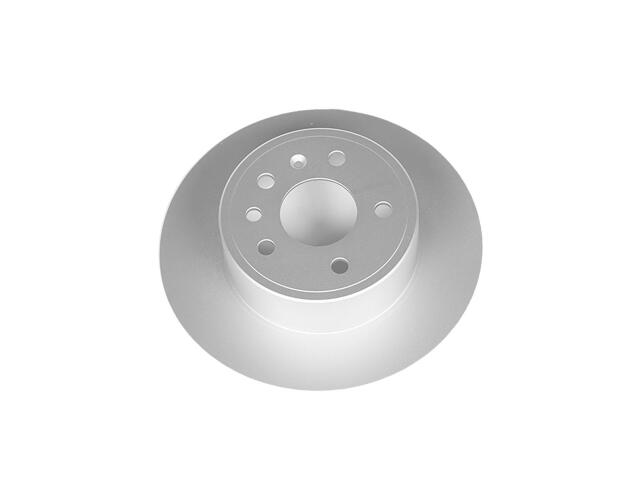

Rotor
POWER STOP : EBR612EVC

ABS Sensor Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8.00
Mounting Bolt Hole Circle Diameter (IN): 4.33
Mounting Bolt Hole Circle Diameter (MM): 110.00
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10.00
Outside Diameter (IN): 11.26
Outside Diameter (MM): 286.00
Overall Height (IN): 2.73
Overall Height (MM): 69.30
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

SAAB (1)

SATURN (3)
