POWER STOP
EBR1695EVC

第三方数据POWER STOP : EBR1695EVC

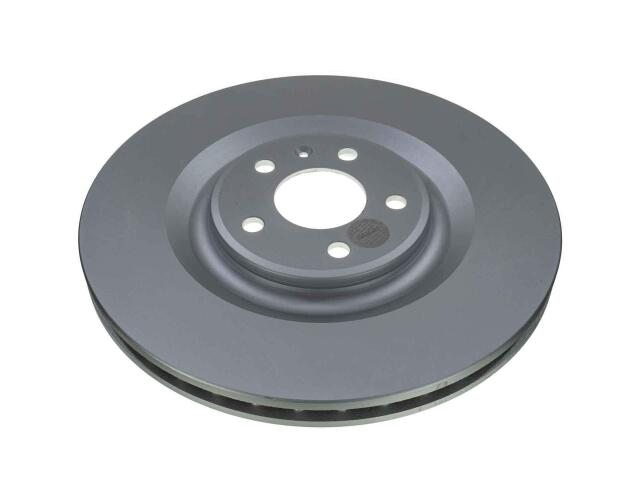

Rotor
POWER STOP : EBR1695EVC

Discard Thickness (IN): 1.02
Discard Thickness (MM): 26.00
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112.00
Nominal Thickness (IN): 1.10
Nominal Thickness (MM): 27.91
Outside Diameter (IN): 13.77
Outside Diameter (MM): 349.70
Overall Height (IN): 1.43
Overall Height (MM): 36.22
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5

适用车型

AUDI (11)

Q7 (4)

S6 (1)

S7 (1)

A8 (3)

Q8 (1)

S8 (1)

SQ7 (1)

SQ8 (1)

E-TRON (1)

E-TRON QUATTRO (1)

E-TRON S (1)
