FVP
12166060

第三方数据FVP : 12166060

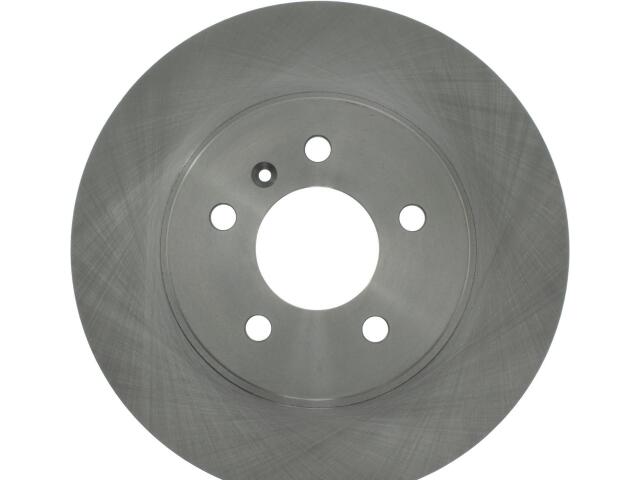

Rotor
FVP : 12166060

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.500
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 11.772
Outside Diameter (MM): 299.000
Overall Height (IN): 1.441
Overall Height (MM): 36.600
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.561
Stud/Lug Hole Diameter (MM): 14.250
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

参考号

厂商	号码
OE	121-6606*
