12166058

第三方数据FVP : 12166058

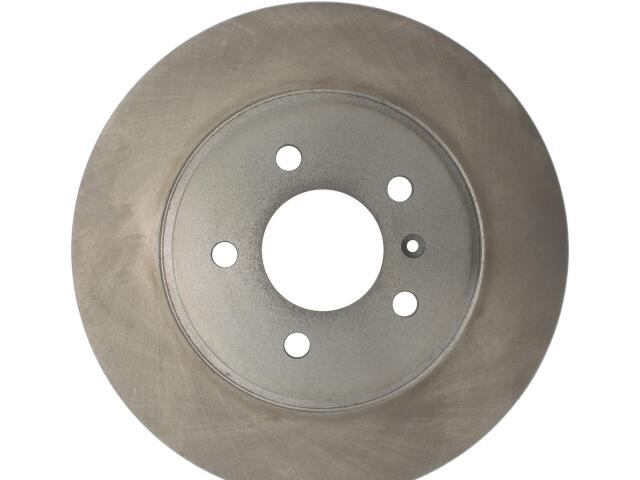

Rotor
FVP : 12166058

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.780
Center Hole Diameter (MM): 70.600
Disc Mounting: Floating
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.500
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300.000
Overall Height (IN): 1.189
Overall Height (MM): 30.200
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

参考号

厂商	号码
OE	121-6605*
