FVP
12166048

第三方数据FVP : 12166048

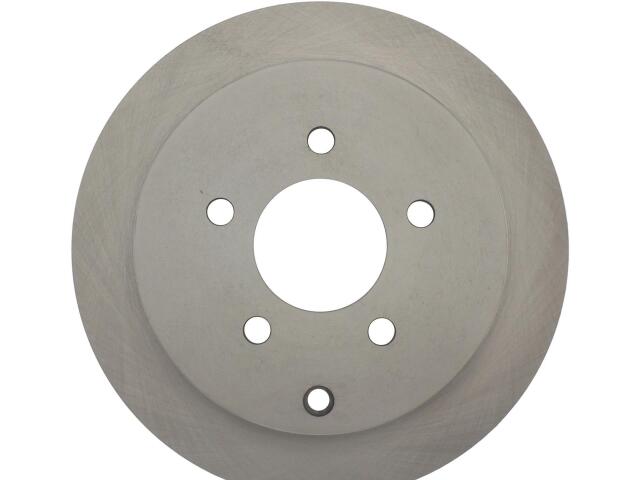

Rotor
FVP : 12166048

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.768
Center Hole Diameter (MM): 70.300
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.484
Nominal Drum Diameter (MM): 190.100
Nominal Thickness (IN): 0.433
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 11.417
Outside Diameter (MM): 290.000
Overall Height (IN): 1.831
Overall Height (MM): 46.500
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.551
Stud/Lug Hole Diameter (MM): 14.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (1)

OLDSMOBILE (1)

PONTIAC (2)

参考号

厂商	号码
OE	121-6604*
