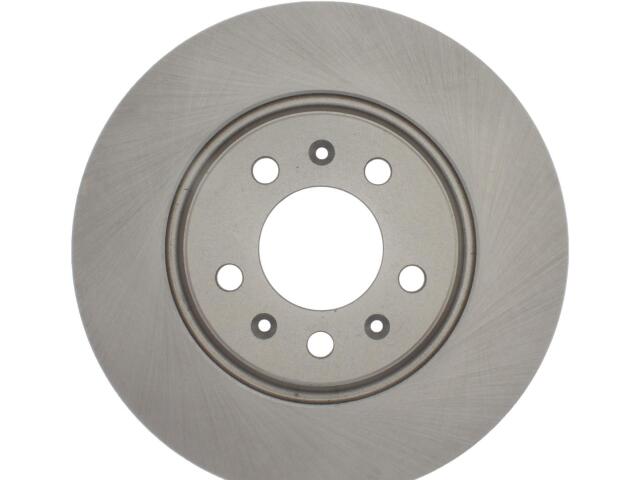

Rotor
FVP : 12162093

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.760
Center Hole Diameter (MM): 70.100
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Mounting Bolt Hole Circle Diameter (IN): 4.339
Mounting Bolt Hole Circle Diameter (MM): 110.200
Nominal Thickness (IN): 1.020
Nominal Thickness (MM): 25.900
Outside Diameter (IN): 11.657
Outside Diameter (MM): 296.100
Overall Height (IN): 1.701
Overall Height (MM): 43.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.559
Stud/Lug Hole Diameter (MM): 14.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Pillar

适用车型

PONTIAC (1)

SATURN (1)

参考号

厂商	号码
OE	121-6209*
