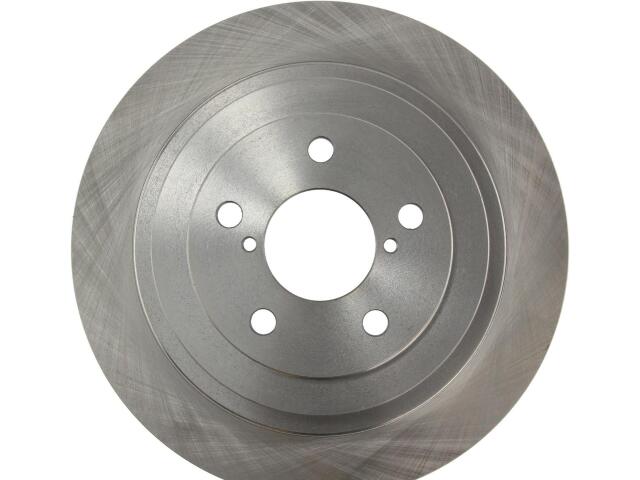

Rotor
FVP : 12147017

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.283
Center Hole Diameter (MM): 58.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.500
Max PB Drum Dia in: 6.732
Max PB Drum Dia mm: 171.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Drum Diameter (IN): 6.693
Nominal Drum Diameter (MM): 170.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.406
Outside Diameter (MM): 289.700
Overall Height (IN): 2.591
Overall Height (MM): 65.800
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.508
Stud/Lug Hole Diameter (MM): 12.900
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

SUBARU (3)

参考号

厂商	号码
OE	121-4701*
