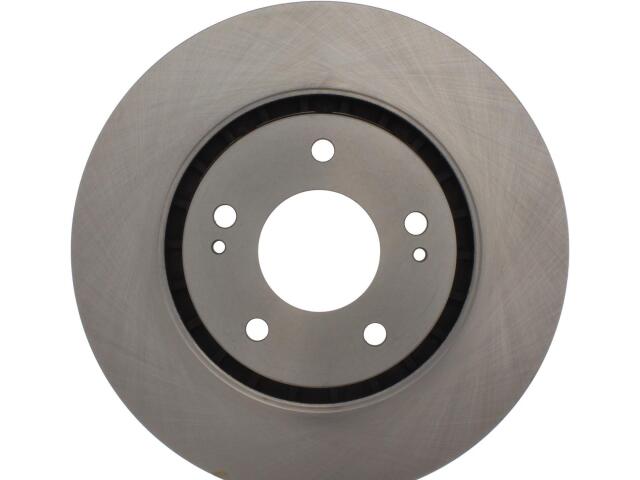

Rotor
FVP : 12146078

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating
Discard Thickness (IN): 0.882
Discard Thickness (MM): 22.400
Hat ID in: 5.634
Hat ID mm: 143.100
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24.000
Outside Diameter (IN): 11.575
Outside Diameter (MM): 294.000
Overall Height (IN): 1.807
Overall Height (MM): 45.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

MITSUBISHI (1)

参考号

厂商	号码
OE	121-4607*
