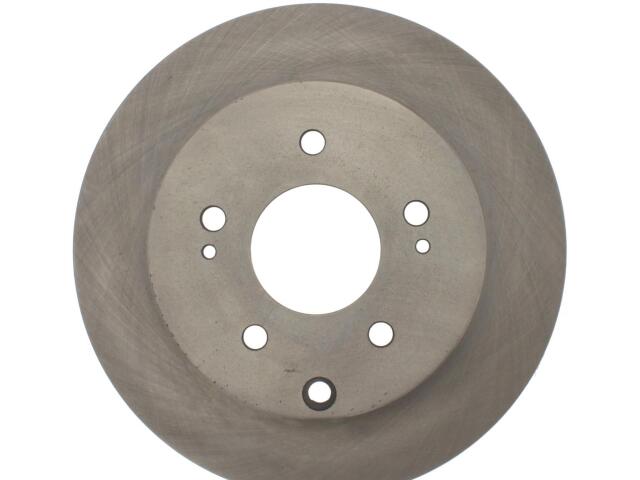

Rotor
FVP : 12146072

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.724
Discard Thickness (MM): 18.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 11.181
Outside Diameter (MM): 284.000
Overall Height (IN): 2.378
Overall Height (MM): 60.400
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

MITSUBISHI (1)

参考号

厂商	号码
OE	121-4607*
