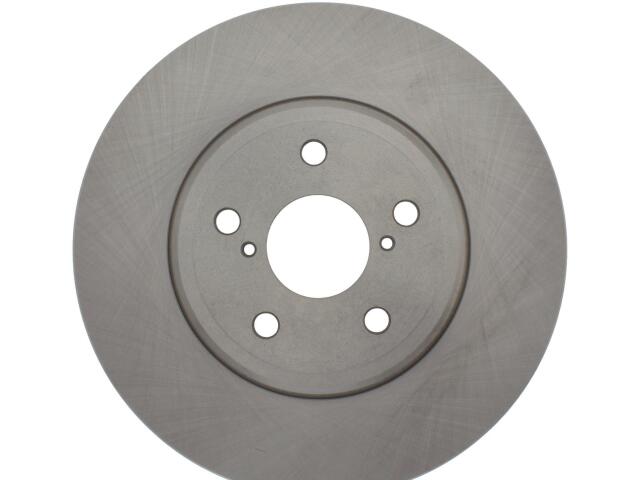

Rotor
FVP : 12144122

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62.000
Disc Mounting: Floating
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.402
Outside Diameter (MM): 315.000
Overall Height (IN): 1.980
Overall Height (MM): 50.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

LEXUS (1)

参考号

厂商	号码
OE	121-4412*
