FVP
12140074

第三方数据FVP : 12140074

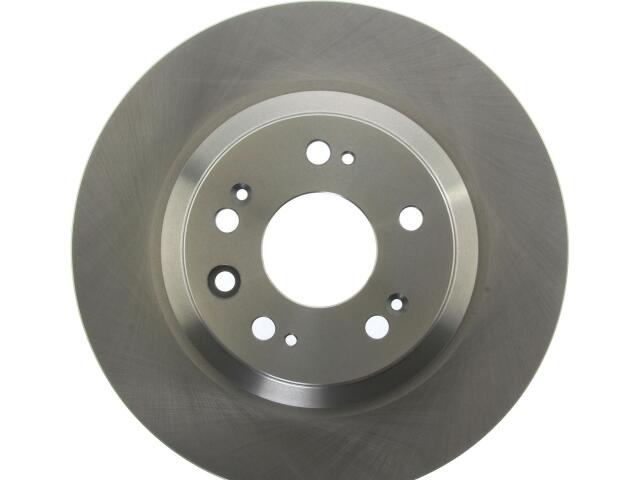

Rotor
FVP : 12140074

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.760
Center Hole Diameter (MM): 70.100
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Max PB Drum Dia in: 7.520
Max PB Drum Dia mm: 191.000
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Drum Diameter (IN): 7.480
Nominal Drum Diameter (MM): 190.000
Nominal Thickness (IN): 0.433
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 13.150
Outside Diameter (MM): 334.000
Overall Height (IN): 2.382
Overall Height (MM): 60.500
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.579
Stud/Lug Hole Diameter (MM): 14.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

ACURA (1)

参考号

厂商	号码
OE	121-4007*
