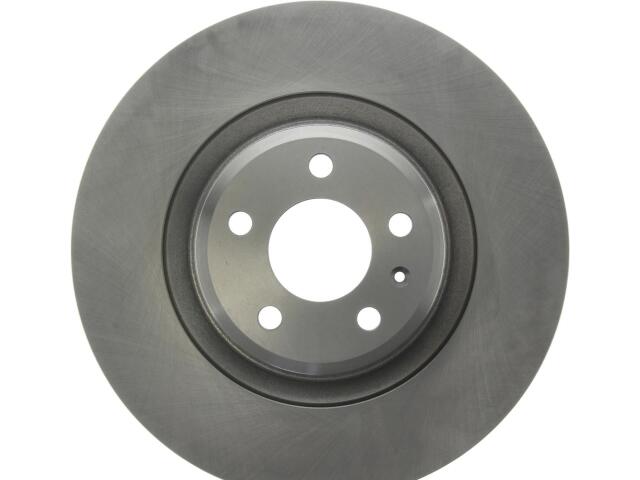

Rotor
FVP : 12133124

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28.000
Mounting Bolt Hole Circle Diameter (IN): 4.409
Mounting Bolt Hole Circle Diameter (MM): 112.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 13.567
Outside Diameter (MM): 344.600
Overall Height (IN): 2.043
Overall Height (MM): 51.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.598
Stud/Lug Hole Diameter (MM): 15.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Curved

适用车型

AUDI (2)

参考号

厂商	号码
OE	121-3312*
