CENTRIC
32066061F

第三方数据CENTRIC : 32066061F

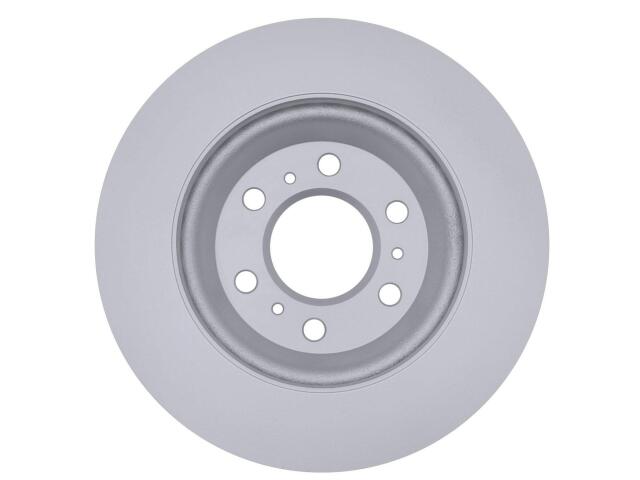

Rotor
CENTRIC : 32066061F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 1.209
Discard Thickness (MM): 30.700
Hat Finish: Coated
Misc Holes: 3
Nominal Thickness (IN): 1.268
Nominal Thickness (MM): 32.200
Outside Diameter (IN): 11.693
Outside Diameter (MM): 297.000
Overall Height (IN): 2.055
Overall Height (MM): 52.200
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Pillar

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
CENT	320-66061*
