CENTRIC
32046071F

第三方数据CENTRIC : 32046071F

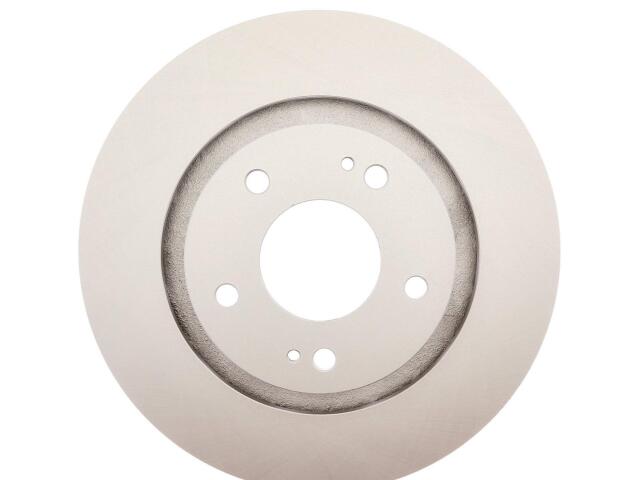

Rotor
CENTRIC : 32046071F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 0.882
Discard Thickness (MM): 22.400
Hat Finish: Coated
Misc Holes: 2
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24.000
Outside Diameter (IN): 11.575
Outside Diameter (MM): 294.000
Overall Height (IN): 1.807
Overall Height (MM): 45.900
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
CENT	320.46071*
