CENTRIC
32044142F

第三方数据CENTRIC : 32044142F

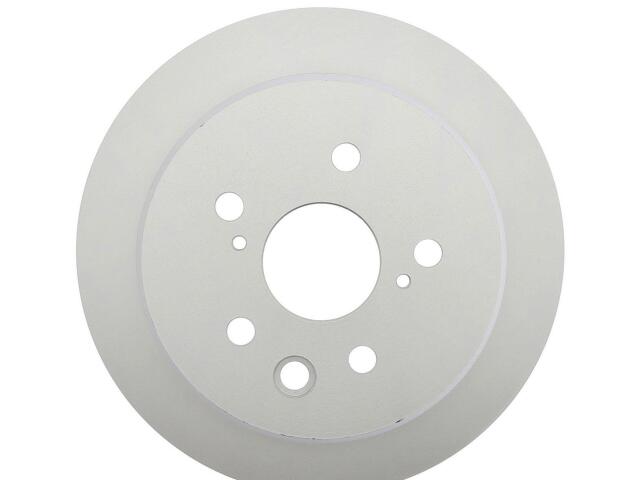

Rotor
CENTRIC : 32044142F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.500
Hat Finish: Coated
Max PB Drum Dia (IN): 7.520
Max PB Drum Dia (MM): 191.000
Misc Holes: 3
Nominal Drum Diameter (IN): 7.441
Nominal Drum Diameter (MM): 189.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.457
Outside Diameter (MM): 291.000
Overall Height (IN): 2.406
Overall Height (MM): 61.100
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

LEXUS (1)

OE号码

品牌	号码
CENT	320.44142*
