CENTRIC
32035116F

第三方数据CENTRIC : 32035116F

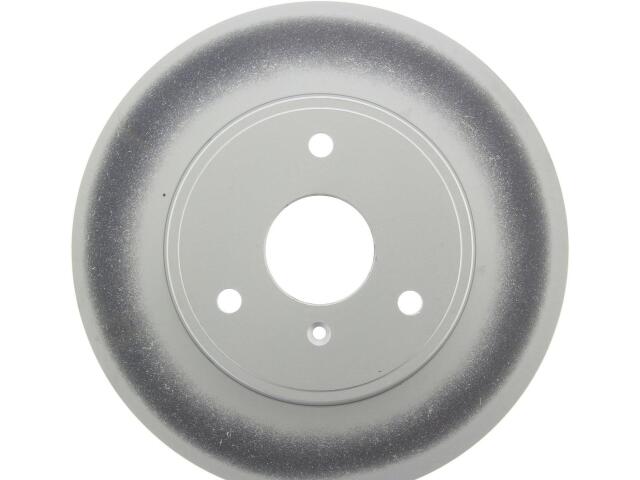

Rotor
CENTRIC : 32035116F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.409
Bolt Circle Diameter (MM): 112.000
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat Finish: Coated
Misc Holes: 1
Nominal Thickness (IN): 0.374
Nominal Thickness (MM): 9.500
Outside Diameter (IN): 11.012
Outside Diameter (MM): 279.700
Overall Height (IN): 1.504
Overall Height (MM): 38.200
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

SMART (2)
