CENTRIC
22746075L

第三方数据CENTRIC : 22746075L

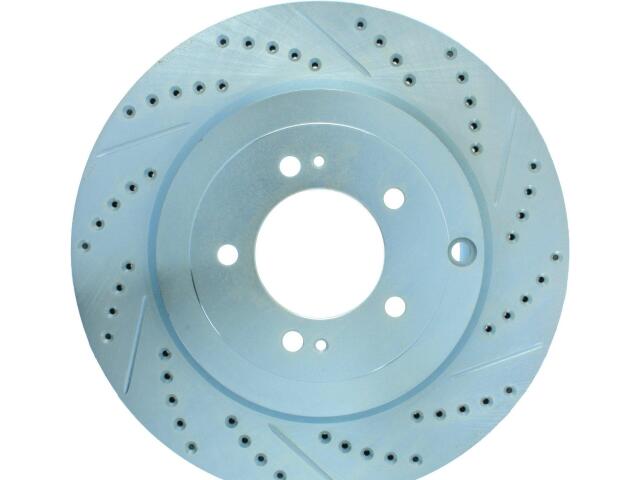

Rotor
CENTRIC : 22746075L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.150
Center Hole Diameter (MM): 80.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Hat ID in: 7.480
Hat ID mm: 190.000
Max PB Drum Dia in: 7.520
Max PB Drum Dia mm: 191.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.476
Nominal Drum Diameter (MM): 189.900
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 2.327
Overall Height (MM): 59.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.488
Stud/Lug Hole Diameter (MM): 12.400
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Pillar

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
CENT	227.46075*
