CENTRIC
22746071L

第三方数据CENTRIC : 22746071L

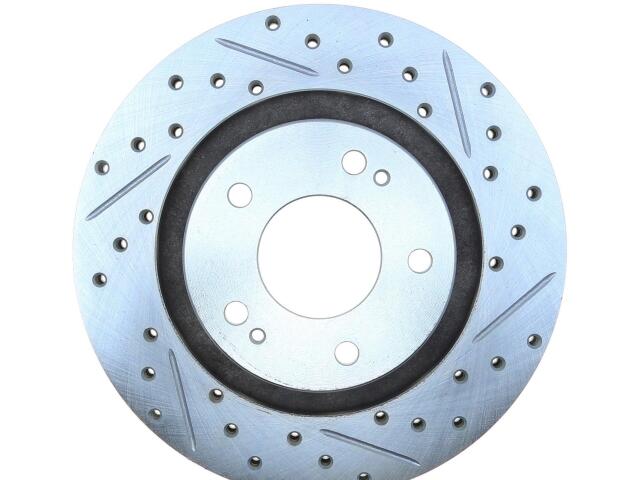

Rotor
CENTRIC : 22746071L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating
Discard Thickness (IN): 0.882
Discard Thickness (MM): 22.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24.000
Outside Diameter (IN): 11.575
Outside Diameter (MM): 294.000
Overall Height (IN): 1.807
Overall Height (MM): 45.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
CENT	227-46071*
