CENTRIC
22744090L

第三方数据CENTRIC : 22744090L

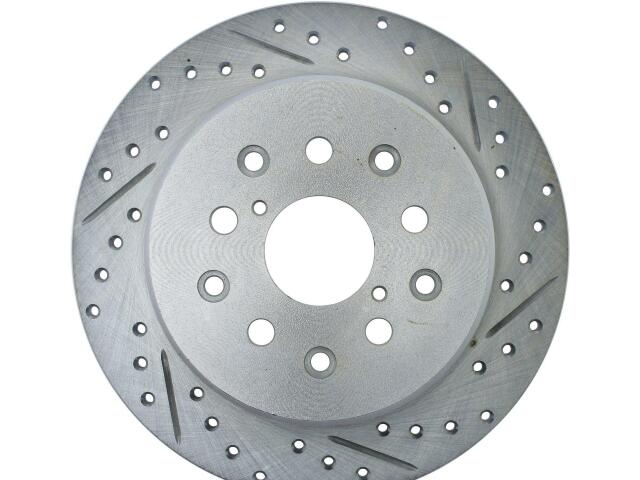

Rotor
CENTRIC : 22744090L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.500
Max PB Drum Dia in: 7.520
Max PB Drum Dia mm: 191.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.480
Nominal Drum Diameter (MM): 190.000
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 12.087
Outside Diameter (MM): 307.000
Overall Height (IN): 2.492
Overall Height (MM): 63.300
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

LEXUS (4)

OE号码

品牌	号码
CENT	227-44090*
