CENTRIC
12546065

第三方数据CENTRIC : 12546065

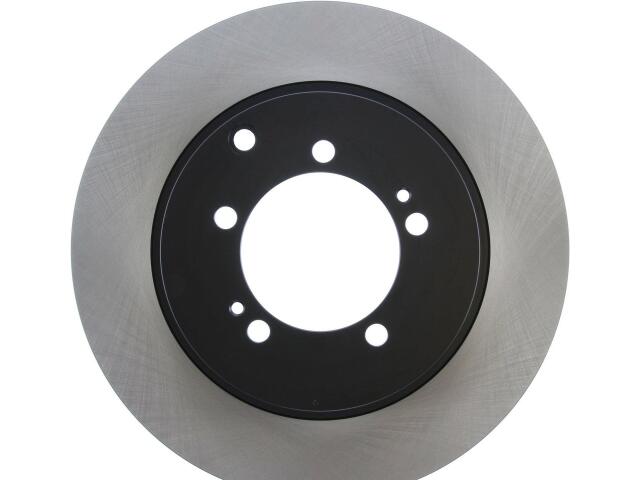

Rotor
CENTRIC : 12546065

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.803
Discard Thickness (MM): 20.400
Hat Finish: Coated
Max PB Drum Dia (IN): 6.654
Max PB Drum Dia (MM): 169.000
Misc Holes: 3
Nominal Drum Diameter (IN): 6.606
Nominal Drum Diameter (MM): 167.800
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300.000
Overall Height (IN): 2.264
Overall Height (MM): 57.500
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Pillar

适用车型

MITSUBISHI (1)

参考号

厂商	号码
DFC	1310-2062-0*

厂商	号码
DFC	1311-0547-0*

OE号码

品牌	号码
CENT	125.4606*
