CENTRIC
12144175

第三方数据CENTRIC : 12144175

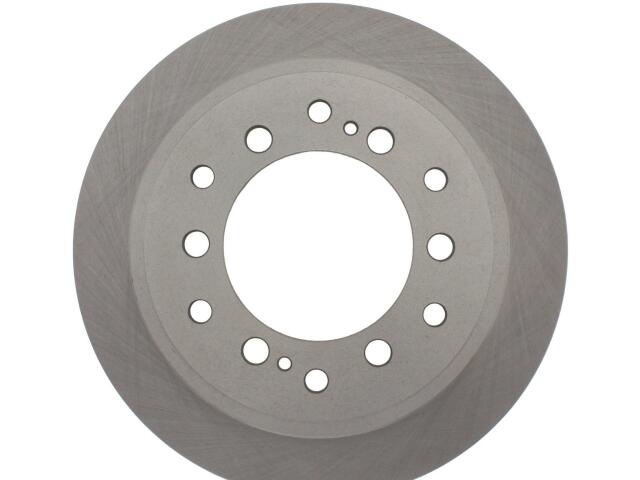

Rotor
CENTRIC : 12144175

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 5.500
Bolt Circle Diameter (MM): 139.700
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.630
Discard Thickness (MM): 16.000
Hat ID (IN): 8.248
Hat ID (MM): 209.500
Max PB Drum Dia (IN): 8.307
Max PB Drum Dia (MM): 211.000
Misc Holes: 8
Nominal Drum Diameter (IN): 8.256
Nominal Drum Diameter (MM): 209.700
Nominal Thickness (IN): 0.709
Nominal Thickness (MM): 18.000
Outside Diameter (IN): 12.287
Outside Diameter (MM): 312.100
Overall Height (IN): 2.681
Overall Height (MM): 68.100
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

LEXUS (1)

TOYOTA (2)

参考号

厂商	号码
ACDELCO GOLD/PROFESSIONAL	18A273*
ACDELCO GOLD/PROFESSIONAL BRAKES	18A273*
ACDELCO GOLD/PROFESSIONAL BRAKES CANADA	18A273*
ACDELCO GOLD/PROFESSIONAL CANADA	18A273*
ACDELCO SILVER/ADVANTAGE	18A2735*
ACDELCO SILVER/ADVANTAGE CANADA	18A2735*

厂商	号码
ACDELCO US	18A2735*
ACDELCO US	18A273*
AMERIBRAKES	47997*
AUTOZONE/BRAKEWARE-BENDIX	PRT606*
AUTOZONE/RAYBESTOS	980780PE*
BENDIX	PRT606*

厂商	号码
BEST BRAKES USA	GP3155*
CARQUEST/RAYBESTOS	3155*
MAGMA BRAKES	PMR56518*
MAGNETI MARELLI OFFERED BY MOPAR	1AMVR2032*
RAYBESTOS UNBRANDED	980780PE*
RAYBESTOS UNBRANDED	3155*

OE号码

品牌	号码
CENT	121.4417*

品牌	号码
MOPAR BR	1AMVR2032*
