CENTRIC
12044144

第三方数据CENTRIC : 12044144

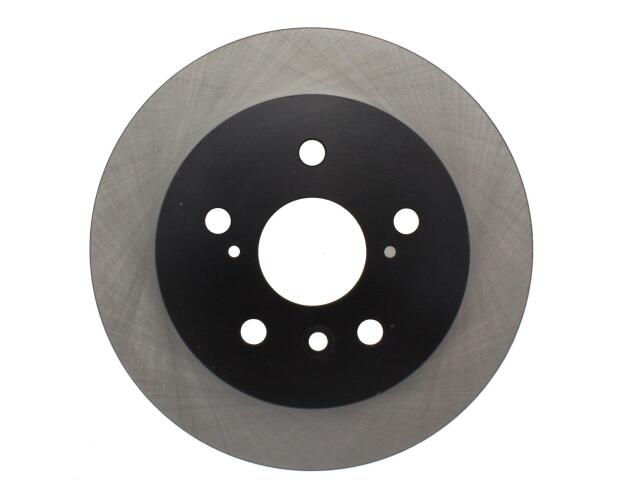

Rotor
CENTRIC : 12044144

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.500
Hat Finish: Coated
Hat ID (IN): 6.413
Hat ID (MM): 162.900
Max PB Drum Dia (IN): 6.732
Max PB Drum Dia (MM): 171.000
Misc Holes: 3
Nominal Drum Diameter (IN): 6.654
Nominal Drum Diameter (MM): 169.000
Nominal Thickness (IN): 0.398
Nominal Thickness (MM): 10.100
Outside Diameter (IN): 11.063
Outside Diameter (MM): 281.000
Overall Height (IN): 2.642
Overall Height (MM): 67.100
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

LEXUS (1)

TOYOTA (2)

参考号

厂商	号码
ADVANCE/CARQUEST PREMIUM AC	YH145712*
ADVANCE/CARQUEST WEAREVER BRAKES	YH145712*
ADVANCE/WAGNER BRAKES	BD12648*
ATE/PREMIUMONE	CW1072*
AUTO EXTRA	BR90034*
AUTO EXTRA DRUMS-ROTORS/NEW SEQ	AX90034*
AUTOPART INTERNATIONAL	1427-53016*
AUTOZONE/BECK ARNLEY	083-316*
BENDIX GLOBAL	PRT571*
BEST BRAKES USA	PQB3143*
CARQUEST PLATINUM ROTORS	YH145712*

厂商	号码
CARQUEST PREMIUM COATED ROTORS	YH145712*
DURAGO EP COATED	BR900342-0*
FREMAX BRAKE ROTORS & DRUMS	BD293*
MAX ADVANCED BRAKES	ONZ023*
MOOG	BD12648*
MOOG	BD126489*
NATIONAL SEALS	BD126489*
NATIONAL SEALS	BD12648*
NEWTEK AUTOMOTIVE	3143*
OMNIPARTS	1306028*
OMNIPARTS	1310028*

厂商	号码
PARTS MASTER/DURA INTERNATIONAL	BD3640*
PARTS MASTER/DURA INTERNATIONAL	BR90034*
POWER STOP	JBR114*
POWER STOP	JBR1145XP*
POWER STOP XPR	JBR1145XP*
QUALIS	4458*
TRANSIT	8-98046*
TRANSIT	DS1-98046*
TRANSIT	GCR-98046*
WAGNER BRAKE	BD12648*
WORLDPARTS BRAKE PADS & ROTORS-CANADA	WS1-23143*

OE号码

品牌	号码
CENT	120.4414*

品牌	号码
NISSAN	1310028*

品牌	号码
NISSAN	1306028*
