TYC
2975

第三方数据TYC : 2975

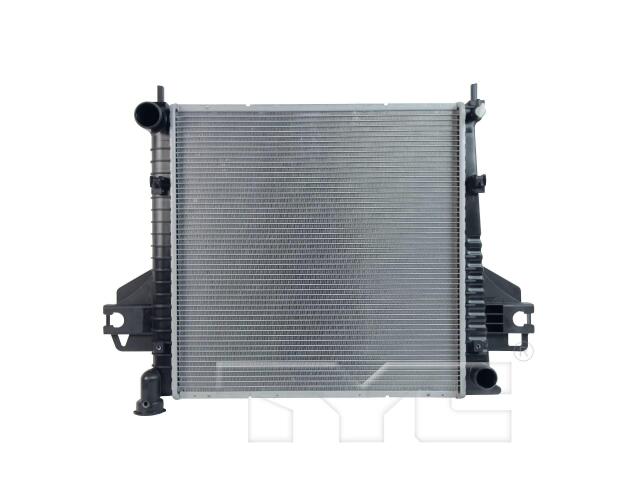

Radiator
TYC : 2975

Bottom Header: 2.55" x 20.98
Core Height (IN): 19.74
Core Length (IN): 20
Core Material: Aluminum
Core Thickness (IN): 1.02
Engine Oil Cooler Included: No
Fin Count (Every 4"): 78
Fin Wave Height (IN): 0.30
Find Wave Pitch: 2.6
Flow Configuration: Crossflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.50
Number of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.81
Top Header: 2.55" x 20.98
Total Fin Row Count: 53
Total Tube Count: 52
Transmission Oil Cooler Included: No
Tube Count (Every 4"): 11
Tube Width x Height: 26x2

适用车型

JEEP (1)

参考号

厂商	号码
OE	CH301036*
OE	68020278A*
ADVANCE INTERCOOLER	81297*
ADVANCE/CARQUEST RADIATOR	81297*
APDI	801297*

厂商	号码
AUTOZONE/DENSO	221-941*
CARQUEST RADIATOR	81297*
DENSO	221-941*
DPI	297*
O'REILLY/MURRAY HEAT TRANSFER	801297*

厂商	号码
OR/MURRAY HEAT TRANSFER	801297*
PARTSLINK	CH301036*
REACH COOLING	41-297*
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU297*

OE号码

品牌	号码
JEEP	68020278A*
