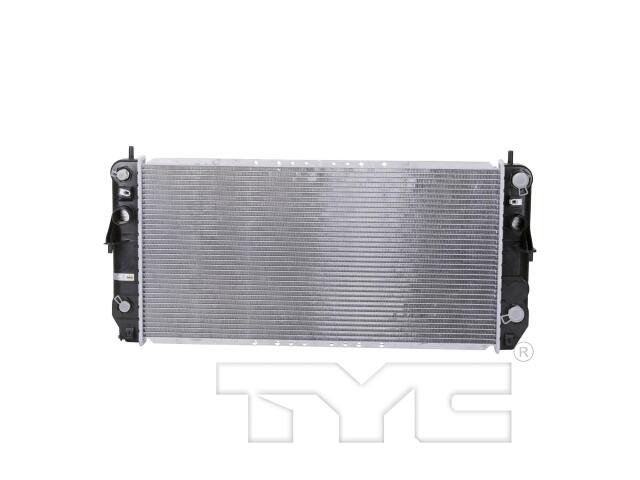

Radiator
TYC : 2620

Bottom Header: 2.42" x 16.59
Core Height (IN): 15.08
Core Length (IN): 30.51
Core Material: Aluminum
Core Thickness (IN): 1.26
EOC Distance (IN): 11.50
Engine Oil Cooler Included: Yes
Engine Oil Cooler Type: Plate Oil Cooler
Fin Count (Every 4"): 64
Fin Wave Height (IN): 0.35
Find Wave Pitch: 3.2
Flow Configuration: Crossflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.30
Number of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.57
TOC Distance (IN): 11.50
TOC Inlet Diameter (IN): 5/8-18UNF
TOC Inlet Type: Quick Connect
Top Header: 2.42" x 16.59
Total Fin Row Count: 35
Total Tube Count: 34
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: PLATE
Tube Count (Every 4"): 10
Tube Width x Height: 32x2

适用车型

CADILLAC (1)

参考号

厂商	号码
OE	GM301040*
OE	5248695*
AI/OSC	1605-37008*
APDI	801262*
CRYOMAX	262*

厂商	号码
DPI	262*
OR/MURRAY HEAT TRANSFER	43241*
OR/MURRAY HEAT TRANSFER	43809*
OSC	262*
PARTSLINK	GM301040*

厂商	号码
REACH COOLING	REA41-2620*
REACH COOLING	41-262*
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU262*
SUNBELT RADIATORS INC	SBR262*
THERMAL SOLUTIONS MANUFACTURING	43241*

OE号码

品牌	号码
CADILLAC	5248695*

品牌	号码
GENERAL MOTORS	5248695*
