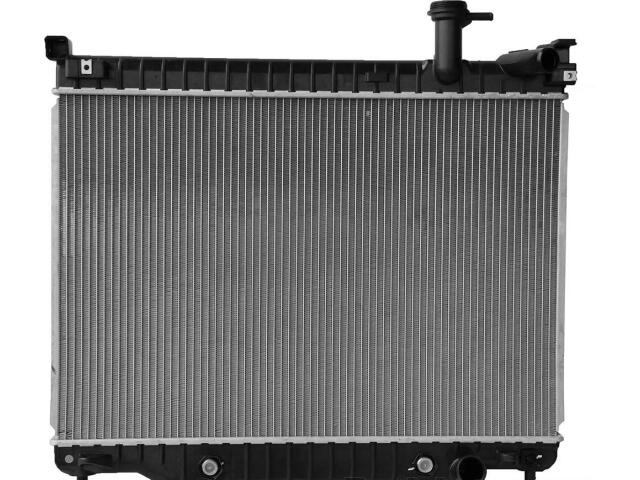

Radiator
OSC : 2563

Core Height (IN): 18 1/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 26 11/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 27 1/2
Inlet Header Width (IN): 2 5/16
Outlet Diameter (IN): 1 9/16
Outlet Header Length (IN): 27 1/2
Outlet Header Width (IN): 2 5/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 4

适用车型

ISUZU (1)

SAAB (1)

BUICK (1)

CHEVROLET (1)

GMC (1)

参考号

厂商	号码
OE	1516221*
OE	1519638*

厂商	号码
OE	815162213*

厂商	号码
OE	815196386*
