第三方数据OSC : 13396

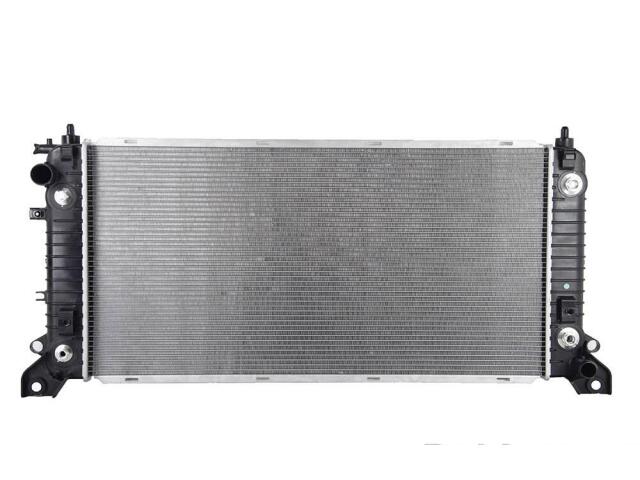

Radiator
OSC : 13396

Core Height (IN): 34
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 7/8
Core Thickness (MM): 22
Core Width (IN): 17 1/8
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: Yes
Engine Oil Cooler Number of Plates: 3 PLATES
Engine Oil Cooler Type: PLATE
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 17 11/16
Inlet Header Width (IN): 2 1/4
Oil Cooler Fittings Distance Apart (IN): 11 1/2
Outlet Diameter (IN): 1 9/16
Outlet Header Length (IN): 17 11/16
Outlet Header Width (IN): 2 7/8
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 6

适用车型

CHEVROLET (1)

GMC (1)

参考号

厂商	号码
OE	2312639*

厂商	号码
OE	2338880*

厂商	号码
OE	8430171*
