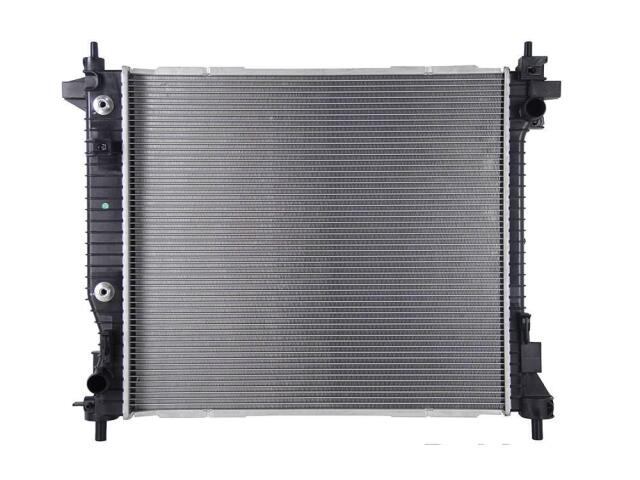

Radiator
OSC : 13243

Core Height (IN): 24 7/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 22
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 22 3/4
Inlet Header Width (IN): 1 13/16
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 22 3/4
Outlet Header Width (IN): 2 15/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 12
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 7

适用车型

CADILLAC (1)

参考号

厂商	号码
OE	2092649*

厂商	号码
OE	2099649*
