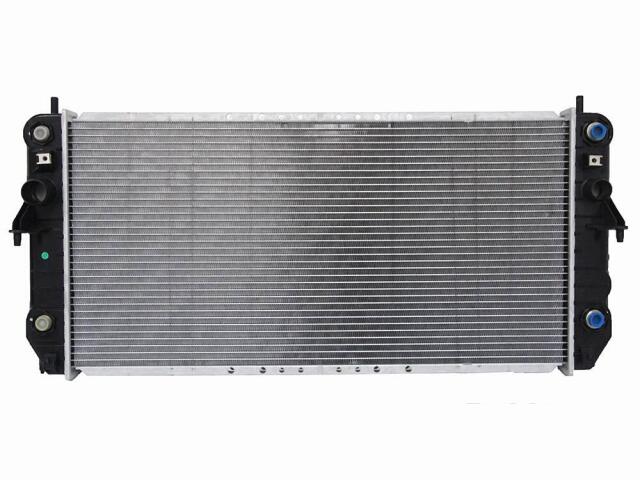

Radiator
FVP : RAD2620

Core Height: 30-1/2 (IN)
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 32 (MM)
Core Width: 15-1/16 (IN)
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: Yes
Engine Oil Cooler Number of Plates: 3 PLATES
Engine Oil Cooler Type: PLATE
Inlet Diameter: 1-5/16 (IN)
Inlet Header Length: 16-5/8 (IN)
Inlet Header Width: 2-7/16 (IN)
Oil Cooler Fittings Distance Apart: 11-1/2 (IN)
Outlet Diameter: 1-9/16 (IN)
Outlet Header Length: 16-5/8 (IN)
Outlet Header Width: 2-7/16 (IN)
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings: 11-1/2 (IN)
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 3

适用车型

CADILLAC (1)

PONTIAC (1)

参考号

厂商	号码
OE	5248695*

厂商	号码
OE	8901871*
