GM GENUINE
19209286

第三方数据GM GENUINE : 19209286

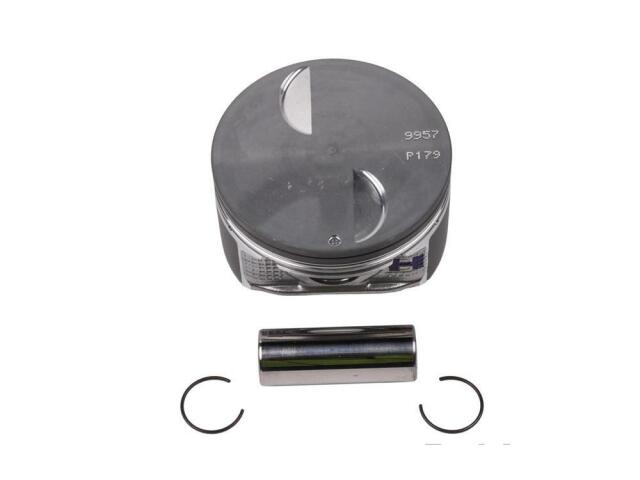

Piston
GM GENUINE : 19209286

Assembly Lubricant Included: No
Diameter (IN): 4.002
Diameter (MM): 101.64
Oil Ring Thickness (In): 0.1
Oil Ring Thickness (mm): 2.54
Piston Head Type: Flat
Piston Inside Diameter (in): 3.8189
Piston Inside Diameter (mm): 97
Piston Material: Aluminum Alloy
Piston Outside Diameter (IN): 4.0019
Piston Outside Diameter (MM): 101.649
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.5512
Piston Pin Inside Diameter (mm): 14
Piston Pin Length (in): 2.5638
Piston Pin Length (mm): 65.12
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.9431
Piston Pin Outside Diameter (mm): 23.955
Ring Material: Steel
Second Compression Ring Thickness (In): 0.06
Second Compression Ring Thickness (mm): 1.53
Skirt Length (in): 1.5802
Skirt Length (mm): 40.138
Skirt Type: Partial
Top Compression Ring Thickness (In): 0.049
Top Compression Ring Thickness (mm): 1.24

适用车型

CADILLAC (1)

CHEVROLET (2)

GMC (2)
