GM GENUINE
19207290

第三方数据GM GENUINE : 19207290

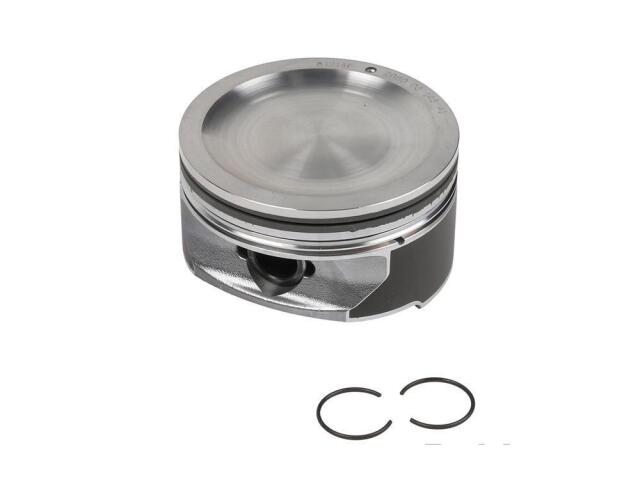

Piston
GM GENUINE : 19207290

Height (IN): 1.15
Length (IN): 8.35
Piston Head Type: Dish
Piston Inside Diameter (in): 3.8779
Piston Inside Diameter (mm): 98.5
Piston Material: Aluminum Alloy
Piston Outside Diameter (IN): 4.0842
Piston Outside Diameter (MM): 103.74
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.5354
Piston Pin Inside Diameter (mm): 13.6
Piston Pin Length (in): 2.5736
Piston Pin Length (mm): 65.37
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.9431
Piston Pin Outside Diameter (mm): 23.955
Ring Material: Steel
Skirt Length (in): 1.4252
Skirt Length (mm): 36.2
Skirt Type: Partial
Width (IN): 3.6

适用车型

CADILLAC (1)

CHEVROLET (1)
