GM GENUINE
19178737

第三方数据GM GENUINE : 19178737

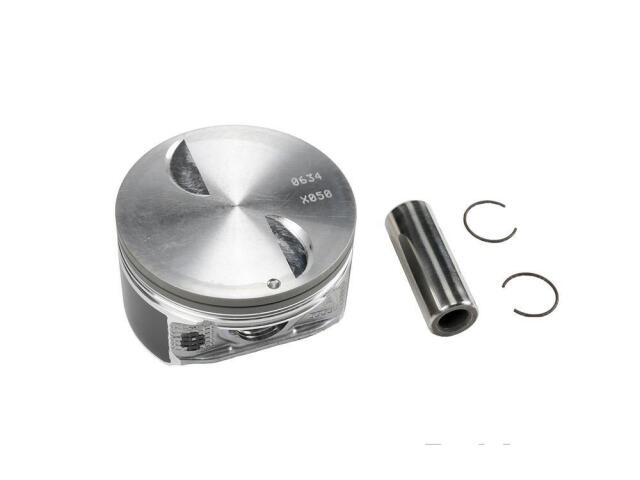

Piston
GM GENUINE : 19178737

Assembly Lubricant Included: No
Bore Diameter (IN): 4.0207
Bore Diameter (MM): 102.127
Piston Head Type: Flat
Piston Material: Aluminum
Piston Outside Diameter (IN): 4.02
Piston Outside Diameter (MM): 102.108
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.5512
Piston Pin Inside Diameter (mm): 14
Piston Pin Length (in): 2.5638
Piston Pin Length (mm): 65.12
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.9447
Piston Pin Outside Diameter (mm): 23.995
Piston Rings Included: No
Ring Material: Steel

适用车型

CADILLAC (1)

CHEVROLET (2)

GMC (2)
