GM GENUINE
12654421

第三方数据GM GENUINE : 12654421

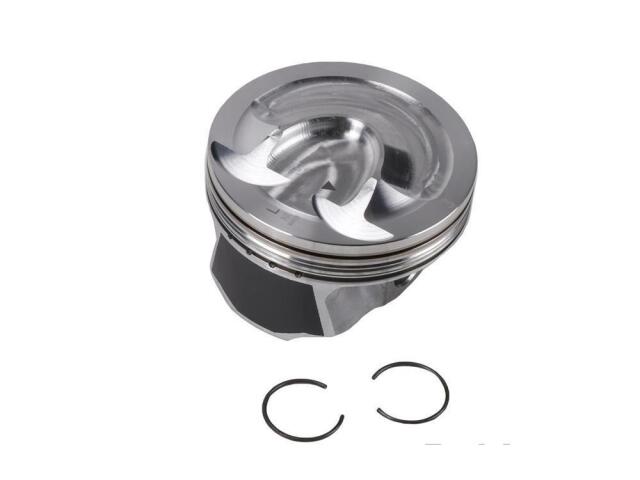

Piston
GM GENUINE : 12654421

7/15/2022: B0B6QD54J3
Assembly Lubricant Included: No
Diameter (IN): 3.701
Diameter (MM): 94
Grade Type: Regular
Height (IN): 1.8
Length (IN): 6.35
Oil Ring Thickness (In): 0.097
Oil Ring Thickness (mm): 2.46
Oil Spacer Ring Thickness (in): 0.087
Oil Spacer Ring Thickness (mm): 2.2
Oversized: Yes
Piston Head Type: Dome
Piston Inside Diameter (in): 3.555
Piston Inside Diameter (mm): 90.3
Piston Material: Aluminum
Piston Outside Diameter (IN): 3.701
Piston Outside Diameter (MM): 94
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.63
Piston Pin Inside Diameter (mm): 16
Piston Pin Length (in): 2.317
Piston Pin Length (mm): 58.85
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.945
Piston Pin Outside Diameter (mm): 24
Ring Inside Diameter (in): 3.478
Ring Inside Diameter (mm): 88.35
Ring Material: Steel
Ring Outside Diameter (in): 3.7
Ring Outside Diameter (mm): 93.97
Second Compression Ring Thickness (In): 0.058
Second Compression Ring Thickness (mm): 1.48
Skirt Length (in): 0.188
Skirt Length (mm): 4.78
Skirt Type: Partial
Top Compression Ring Thickness (In): 0.046
Top Compression Ring Thickness (mm): 1.18
Width (IN): 6.4

适用车型

CADILLAC (4)
