GM GENUINE
12585675

第三方数据GM GENUINE : 12585675

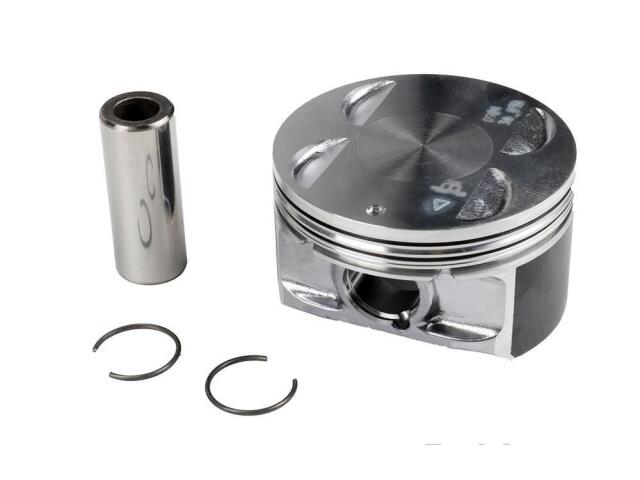

Piston
GM GENUINE : 12585675

Assembly Lubricant Included: No
Diameter (IN): 3.701
Diameter (MM): 94
Grade Type: Regular
Oil Ring Thickness (In): 0.096
Oil Ring Thickness (mm): 2.43
Oil Spacer Ring Thickness (in): 0.04
Oil Spacer Ring Thickness (mm): 1.02
Oversized: Yes
Piston Head Type: Dish
Piston Inside Diameter (in): 3.516
Piston Inside Diameter (mm): 89.3
Piston Material: Aluminum
Piston Outside Diameter (IN): 3.701
Piston Outside Diameter (MM): 94
Piston Pin Incorporated Bearings: No
Piston Pin Inside Diameter (in): 0.551
Piston Pin Inside Diameter (mm): 14
Piston Pin Length (in): 2.396
Piston Pin Length (mm): 60.86
Piston Pin Material: Steel
Piston Pin Outside Diameter (In): 0.945
Piston Pin Outside Diameter (mm): 24
Ring Inside Diameter (in): 3.441
Ring Inside Diameter (mm): 87.4
Ring Material: Steel
Ring Outside Diameter (in): 3.701
Ring Outside Diameter (mm): 94
Second Compression Ring Thickness (In): 0.058
Second Compression Ring Thickness (mm): 1.48
Skirt Length (in): 0.682
Skirt Length (mm): 17.32
Skirt Type: Partial
Top Compression Ring Thickness (In): 0.046
Top Compression Ring Thickness (mm): 1.18

适用车型

SUZUKI (1)

BUICK (4)

CADILLAC (3)

CHEVROLET (2)

PONTIAC (2)

GMC (1)

SATURN (3)
