第三方数据WALKER : 54975

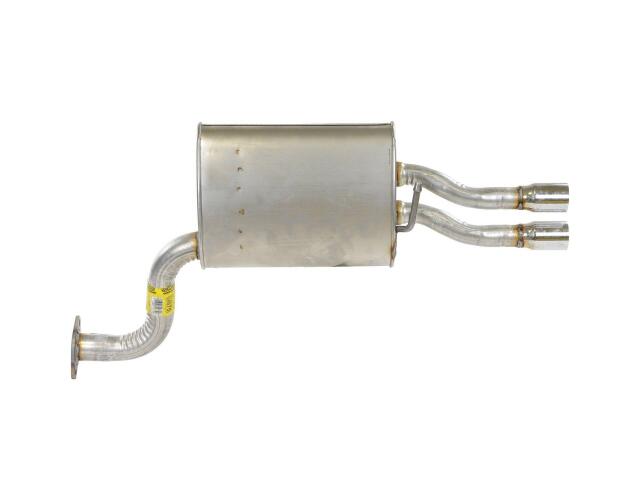

Muffler
WALKER : 54975

Body Material: Stainless Steel
Dimensions - Body Diameter: 11 in.
Dimensions - Body Height: 5.5 in.
Dimensions - Body Length: 15 in.
Dimensions - Body Width: 11 in.
Dimensions - Inlet 1 Outside Diameter: 2.25 In.
Dimensions - Inlet Outside Diameter: 2.25 In.
Dimensions - Outlet 1 Outside Diameter: 2.25 In.
Dimensions - Outlet 2 Outside Diameter: 2.25 In.
Dimensions - Overall Length: 41.625 In.
Finish: Natural
Inlet 1 Type: 2 Bolt welded flange
Inlet Configuration: Offset
Inlet Quantity: 1
Inlet Type: 2 Bolt welded flange
Muffler Material: Stainless Steel
Muffler Shape: Oval
Muffler Type: Reflection
Outlet 1 Type: Dual Tips
Outlet Configuration: Dual
Outlet Quantity: 2
Outlet Type: Dual Tips
Shape: Oval

适用车型

MAZDA (1)

参考号

厂商	号码
OE	L50540100*
OE	L50540100*

厂商	号码
AP EXHAUST W/FEDERAL CONVERTER	4017*

厂商	号码
AP EXHAUST W/O FEDERAL CONVERTER	4017*
