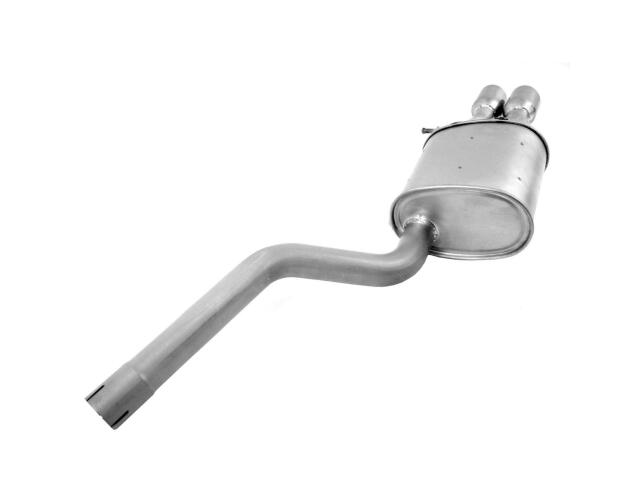

Muffler
WALKER : 54727

Body Material: Steel
Dimensions - Body Diameter: 10.75 in.
Dimensions - Body Height: 7 in.
Dimensions - Body Length: 9.25 in.
Dimensions - Body Width: 10.75 in.
Dimensions - Inlet 1 Inside Diameter: 2.375 In.
Dimensions - Inlet Inside Diameter: 2.375 In.
Dimensions - Outlet 1 Outside Diameter: 2.75 In.
Dimensions - Outlet 2 Outside Diameter: 3 In.
Dimensions - Overall Length: 43 in.
Finish: Aluminized
Inlet 1 Type: Pipe Connection
Inlet Configuration: Offset
Inlet Quantity: 1
Inlet Type: Pipe Connection
Muffler Material: Steel
Muffler Shape: Oval
Muffler Type: Combination
Outlet 1 Type: Dual Tips
Outlet Configuration: Dual
Outlet Quantity: 2
Outlet Type: Dual Tips
Shape: Oval

适用车型

VOLKSWAGEN (1)

JETTA (2)

2.0L L4 Turbocharged (5)

2.5L L5 (10)

参考号

厂商	号码
OE	1K5253609A*
OE	1K5253609A*
OE	1K5253609A*
OE	1K5253609*
OE	1K5253609*

厂商	号码
AP EXHAUST W/FEDERAL CONVERTER	755*
AP EXHAUST W/O FEDERAL CONVERTER	755*
AUTOPART INTERNATIONAL	2103-23563*
AUTOZONE/WALKER	5472*

厂商	号码
BREXHAUST EXHAUST	233-16*
BREXHAUST EXHAUST	233-22*
BREXHAUST EXHAUST	233-23*
CARQUEST/WALKER	5472*

OE号码

品牌	号码
VOLKSWAGEN	1K5253609A*
VOLKSWAGEN	1K5253609A*

品牌	号码
VOLKSWAGEN	1K5253609A*
VOLKSWAGEN	1K5253609*

品牌	号码
VOLKSWAGEN	1K5253609*
