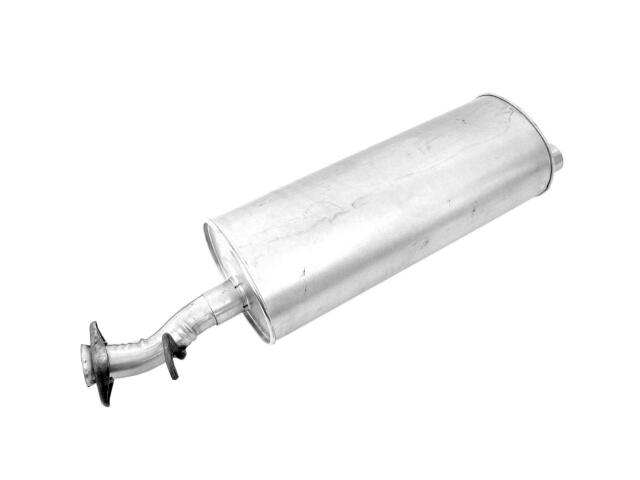

Muffler
WALKER : 53707

Body Material: Stainless Steel
Dimensions - Body Diameter: 11 in.
Dimensions - Body Height: 5.5 in.
Dimensions - Body Length: 19 in.
Dimensions - Body Width: 11 in.
Dimensions - Inlet 1 Inside Diameter: 3.285 In.
Dimensions - Inlet Inside Diameter: 3.285 In.
Dimensions - Outlet 1 Outside Diameter: 2.5 In.
Dimensions - Overall Length: 30.5 in.
Finish: Aluminized
Inlet 1 Type: 2 Bolt Loose Flange With Spherical Flare
Inlet Configuration: Offset
Inlet Quantity: 1
Inlet Type: 2 Bolt Loose Flange With Spherical Flare
Muffler Material: Stainless Steel
Muffler Shape: Oval
Muffler Type: Combination
Outlet 1 Type: Pipe Connection
Outlet Configuration: Center
Outlet Quantity: 1
Outlet Type: Pipe Connection
Shape: Oval

适用车型

FORD (1)

MERCURY (1)

参考号

厂商	号码
OE	6L2Z5230B*
OE	7L2Z5230*

厂商	号码
AUTOZONE/WALKER	5370*

厂商	号码
CARQUEST/WALKER	5370*

OE号码

品牌	号码
FORD	6L2Z5230B*

品牌	号码
FORD	7L2Z5230*
