CENTRIC
13062129

第三方数据CENTRIC : 13062129

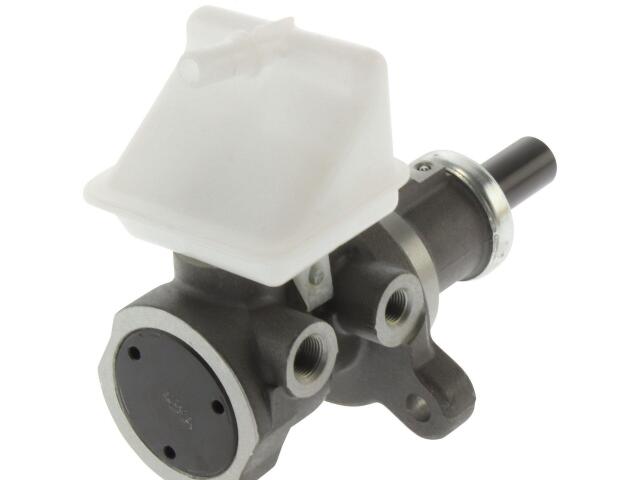

Master Cylinder
CENTRIC : 13062129

Bleeder Hoses Included: No
Brake Booster Included: No
Gasket or Seal Included: Yes
Master Cylinder Bore Diameter (IN): 0.866
Master Cylinder Bore Diameter (MM): 22.000
Master Cylinder Cap Included: No
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Port Quantity: 2
Primary Outlet Flare Type: Inverted
Primary Outlet Thread Diameter (MM): 10.000
Primary Outlet Thread Pitch (MM): 1.00
Push Rod: Length / Depth (IN): 1.72
Pushrod Included: No
Reservoir Included: No
Reservoir Material: Plastic
Secondary Outlet Flare Type: Inverted
Secondary Outlet Thread Diameter (MM): 12.000
Secondary Outlet Thread Pitch (MM): 1.00

适用车型

SATURN (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER MASTER CYL	10-321*
ADVANCE/CARQUEST WEAREVER MASTER CYL	48203*
AUTOPART INTERNATIONAL	1475-3047*

厂商	号码
AUTOPART INTERNATIONAL	3047*
BRAKEBEST	10-321*
CARQUEST WEAREVER MASTER CYLINDERS	10-321*

厂商	号码
DFC	355-5300*
WAGNER BRAKE	MC14229*
WAGNER BRAKE	R13538*

OE号码

品牌	号码
CENT	130.6212*
