DAYCO
PB1713N

第三方数据DAYCO : PB1713N

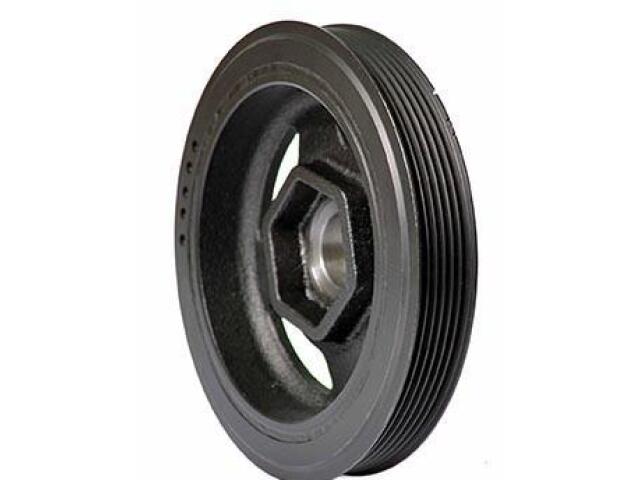

Harmonic Balancer
DAYCO : PB1713N

Bolt Hole Quantity: 0
Counterweight Balance: Neutral, no counterweight
Crank Bore: 30.00 MM
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter: 0.00 MM
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter: 180.00 MM
Overall Width: 45.50 MM
Pulley 1 Number of Grooves: 6 mm
Pulley 1 Outside Diameter: 175.50 mm
Pulley 1 Type: Serpentine
Ring Width: 31.00 MM
Timing Marks: Yes
Woodruff Key Included: No

适用车型

HONDA (7)

ACCORD (1)

ACCORD CROSSTOUR (1)

CROSSTOUR (1)

ODYSSEY (1)

PASSPORT (1)

PILOT (1)

RIDGELINE (1)

ACURA (8)

MDX (3)

RDX (1)

RLX (2)

TL (2)

TLX (2)

TSX (1)

RL (1)

ZDX (1)
