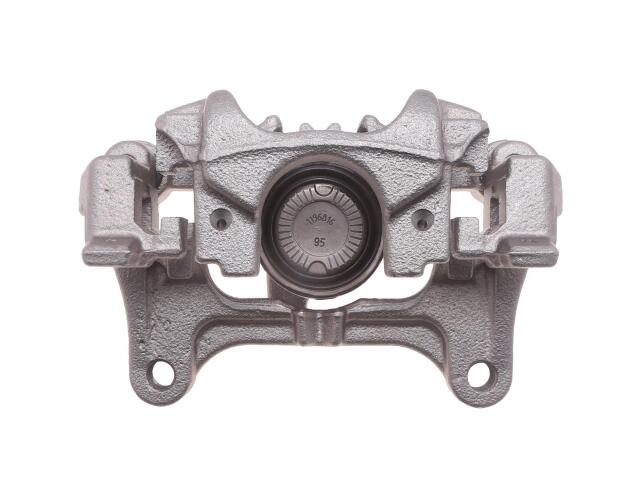

Caliper
FVP : 14162663

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 48.5mm
Bracket #: 743.62663
Bracket Air Gap: 16.5mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: ATE
Caliper Type: Floating
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.50
Mount Spread - Ctr2Ctr: 120.0mm
Mount Thread Size mm: M12-1.75
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.496 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 38
Rust Preventative Coating: Yes

适用车型

BUICK (1)

参考号

厂商	号码
OE	141-6266*
