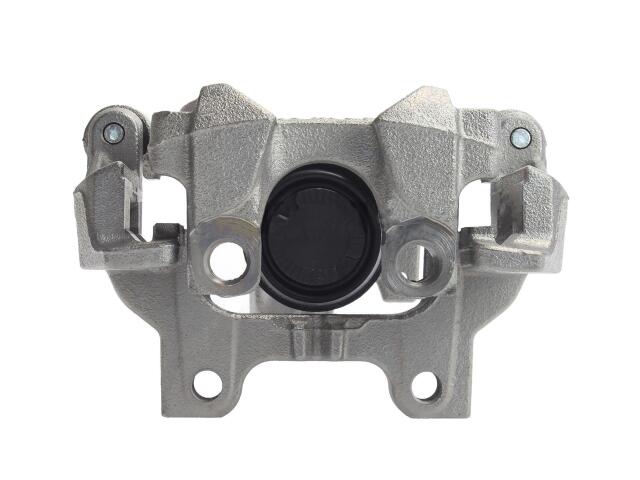

Caliper
FVP : 14134645

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 1.95
Bare Caliper Body Weight lbs: 4.40
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 55.0mm
Bracket #: 743.34645
Bracket Air Gap: 23.5MM
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: ATE
Caliper Type: Floating
Inlet Fitting Type: Bubble
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 76.0mm
Mount Thread Size mm: M12-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.417 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 36
Rust Preventative Coating: Yes

适用车型

BMW (2)

MINI (1)

参考号

厂商	号码
OE	141-3464*
