第三方数据FVP : 14134574

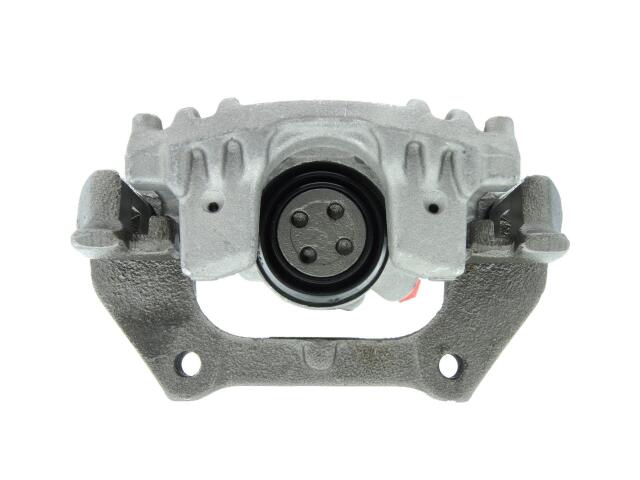

Caliper
FVP : 14134574

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Bracket Included: No
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: ATE
Caliper Type: Floating
Casting Number: 34/10; 995
Inlet Fitting Type: Bubble
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Thread Size mm: M10-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.339 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 34
Rust Preventative Coating: Yes

适用车型

MINI (1)

参考号

厂商	号码
OE	141-3457*
