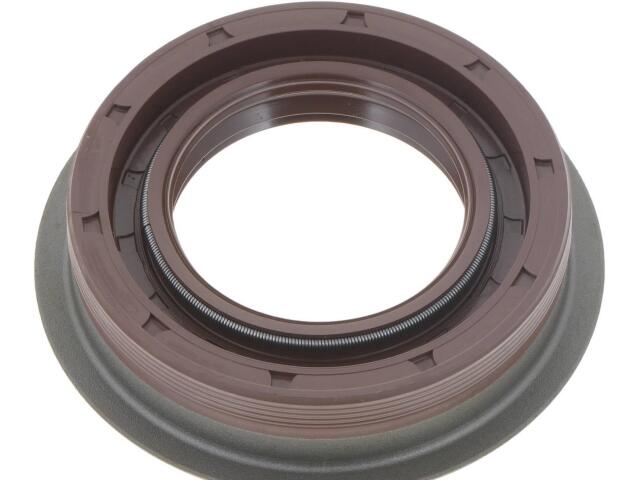

Wheel Seal
BCA : NS4857

External Markings: 1.400 X 2.282 X 0.547
Flange Outside Diameter (IN): 2.60
Flange Outside Diameter (MM): 66.0
Housing Bore (IN): 2.282
Housing Bore (MM): 58
Inside Diameter (IN): 1.38
Inside Diameter (MM): 35
Material: Fluoro-Elastomer
Outside Diameter (IN): 2.29
Outside Diameter (MM): 58.1
Seal Case Material: JIS G3521
Sealing Material: Fluoro-Elastomer
Shaft Diameter (IN): 1.4
Shaft Diameter (MM): 35.6
Spring Material: JIS G3141
Thickness (IN): 0.547
Thickness (MM): 13.9

适用车型

JEEP (1)
