第三方数据BCA : WE61901

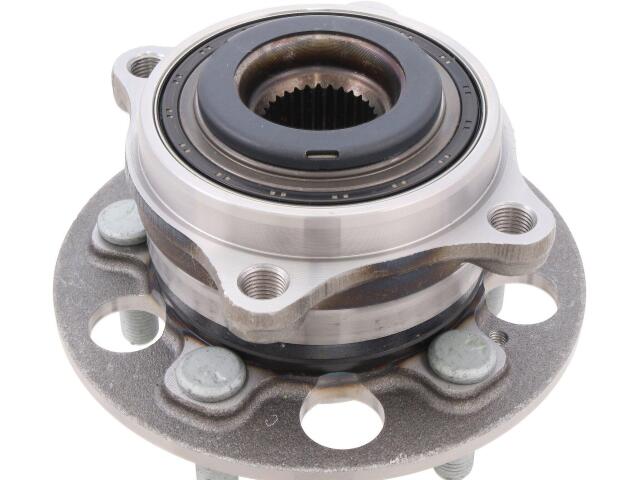

Wheel Bearing & Hub
BCA : WE61901

Anti Lock Braking System: No
Bearing Generation: Gen 3
Bearing Type: BALL
Bolt Circle Diameter (IN): 4.499
Bolt Circle Diameter (MM): 114.3
Brake Pilot Diameter (IN): 2.716
Brake Pilot Diameter (MM): 69
Drive Type: Driven
Flange Bolt Hole Quantity: 4
Flange Diameter (IN): 6.06
Flange Diameter (MM): 154
Flange Included: Yes
Flange Offset (IN): 2.102
Flange Offset (MM): 53.4
Flange Quantity: 2
Flange Shape: Modified Circular
Knuckle Bolt Circle Diameter (IN): 4.673
Knuckle Bolt Circle Diameter (MM): 118.7
Knuckle Bolt Hole Size (IN): 0.47
Knuckle Bolt Hole Size (mm): 12
Knuckle Bolt Thread Pitch (mm): 1.25
Knuckle Pilot Hole Diameter (IN): 3.82
Knuckle Pilot Hole Diameter (MM): 97
Spline Quantity: 30
Wheel Pilot Diameter (IN): 2.637
Wheel Pilot Diameter (MM): 67
Wheel Stud Quantity: 5
Wheel Stud Size (IN): 0.47
Wheel Stud Size (MM): 12
Wheel Stud Thread Pitch (MM): 1.5

适用车型

GENESIS (1)

OE号码

品牌	号码
OE	52730D200*
