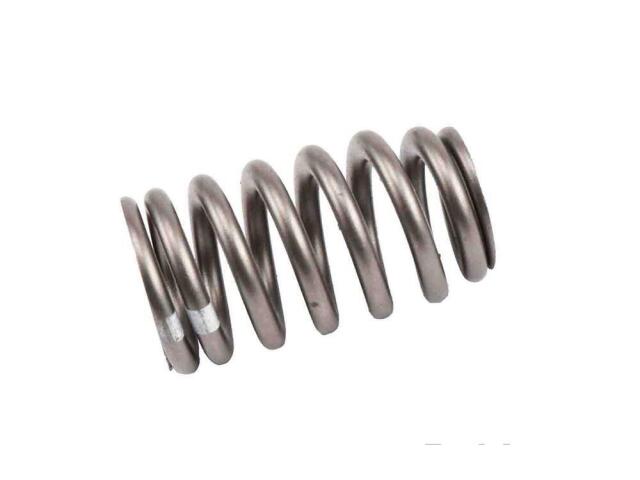

Valve Spring
GM GENUINE : 12621428

Camshaft Type: Hydraulic Roller
Closed Height (in): 1.96
Closed Height (mm): 49.78
Closed Pressure (psi): 101
Coil Bind Height (in): 1.32
Coil Bind Height (mm): 33.53
Inside Diameter (IN): 0.846
Inside Diameter (MM): 21.5
Installed Height (in): 1.96
Installed Height (mm): 49.78
Installed Pressure (psi): 101
Material: Steel
Open Pressure (psi): 310
Outside Diameter (IN): 1.29
Outside Diameter (MM): 32.68
Spring Open Height (in): 1.368
Spring Open Height (mm): 34.75
Spring Rate (kg/in): 140.2
Spring Rate (lbs/in): 309
Spring Type: Beehive
