NATIONAL
710712

第三方数据NATIONAL : 710712

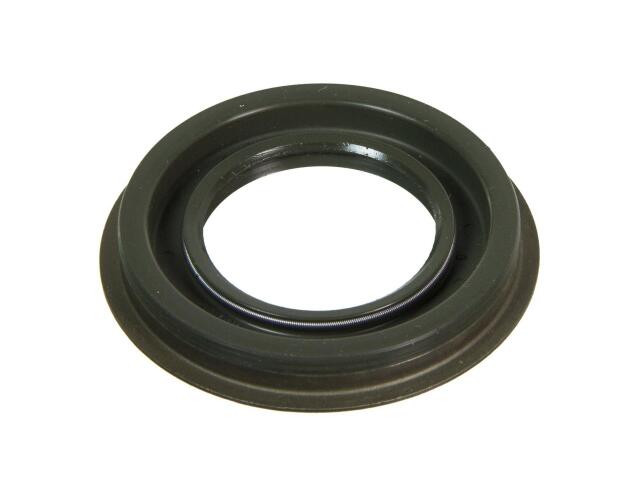

Torque Converter Shaft Seal
NATIONAL : 710712

Flanged Outside Diameter (MM): 72.100
Flanged Outside Diameter (in): 2.839
Helix Type: Clockwise-Spiral Lip Design
Housing Bore (IN): 2.565
Housing Bore (MM): 65.151
Inside Diameter (IN): 1.561
Inside Diameter (MM): 39.649
Material: Fluoro-Elastomer
Outside Diameter (IN): 2.570
Outside Diameter (MM): 65.278
Shaft Diameter (IN): 1.561
Shaft Diameter (MM): 39.649
Thickness (IN): 0.314
Thickness (MM): 7.976
Type: 74
Width (IN): 0.314
Width (MM): 7.976

适用车型

FORD (3)

ESCAPE (4)

EXPLORER (2)

FUSION (4)

MAZDA (1)

LINCOLN (3)

MERCURY (2)

OE号码

品牌	号码
OE	9L8P7A248A*

品牌	号码
OE	9L8Z7A248*

品牌	号码
OE	ZZC71925*
