第三方数据MELLING : 730F

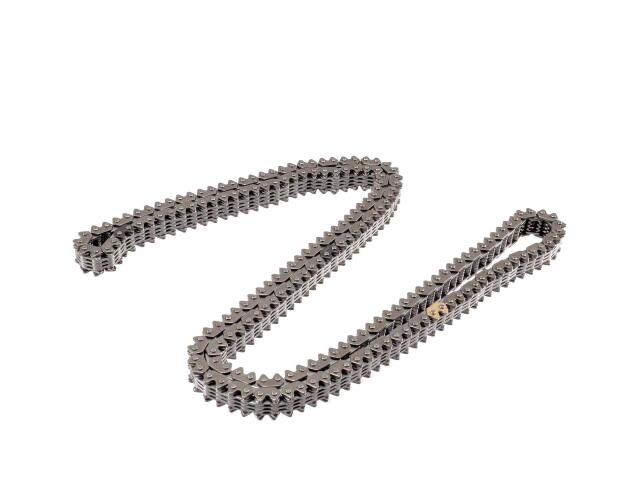

Timing Chain
MELLING : 730F

Chain Length: 615.95 MM
Chain Material: Hardened Steel
Chain Pitch: 0.250"
Chain Type: Back Drive Silent Chain
Chain Width: 15.24 MM
Link Quantity: 196
Roller Quantity: 1
Row Quantity: 1
Timing Mark Quantity: 3
Timing Marks: Yes

适用车型

NISSAN (6)

350Z (1)

ALTIMA (1)

MAXIMA (1)

3.5L V6 (14)

MURANO (1)

3.5L V6 (19)

2005	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2006	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2007	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2009	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2010	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2011	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2012	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2013	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2014	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2015	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2016	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2017	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2018	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2019	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2020	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2021	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2022	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2023	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

2024	Lower; Primary Timing Chain 130289HP0A, 13028AC700, 13028AL500, 13028JA10A, 13028JK00A

PATHFINDER (1)

QUEST (1)

INFINITI (6)

G25 (1)

FX35 (1)

G35 (1)

JX35 (1)

M35 (1)

QX60 (1)

参考号

厂商	号码
ADVANCE/CARQUEST TIMING	C106*
CARQUEST TIMING	C106*
CLOYES	C730*
INA US	ZC-C106*
INA US	ZC-C730*

厂商	号码
INFINITI	13028JK00*
INFINITI	13028-AC70*
INFINITI	13028-AL50*
INFINITI	13028-JA10*

厂商	号码
INFINITI	130289HP0*
PCI	C719*
PREFERRED COMPONENTS INC.	C719*
SA GEAR	C106*

OE号码

品牌	号码
DATSUN/NISSAN	130289HP0*
INFINITI	130289HP0*
NISSAN	130289HP0*
INFINITI	13028AC70*

品牌	号码
NISSAN	13028AC70*
INFINITI	13028AL50*
NISSAN	13028AL50*
INFINITI	13028JA10*

品牌	号码
NISSAN	13028JA10*
DATSUN/NISSAN	13028JK00*
INFINITI	13028JK00*
NISSAN	13028JK00*
